RGBW COB LED Strip/Tape Connector - Coupler - 12mm for LED RGBW COB Tape

- Straight coupler (unwired)

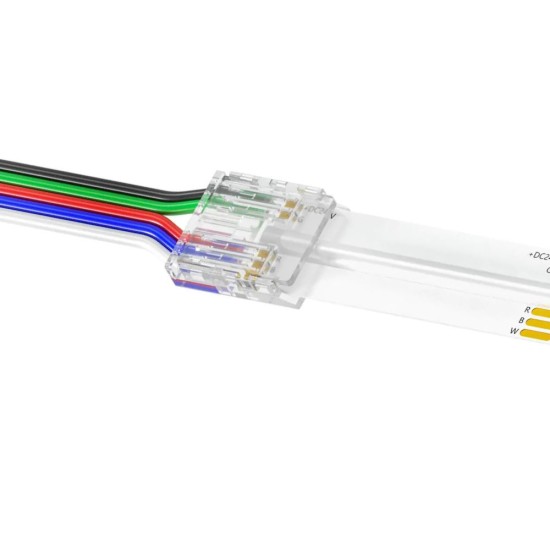

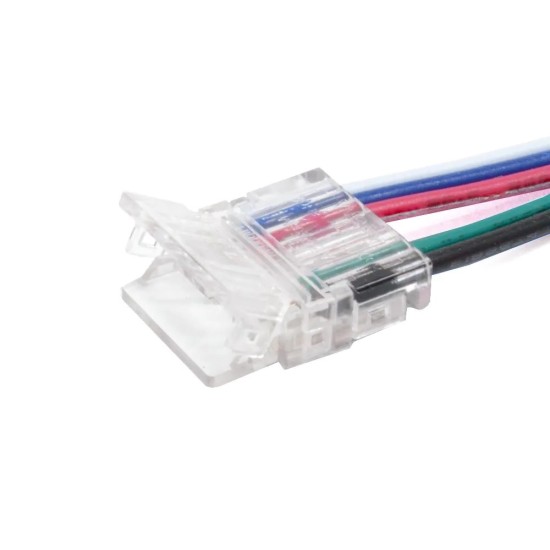

- Wired Feed Connector (c/w approx 100mm of cable for a single end feed)

- Wired Joining Coupler - for joining 2 pcs - (c/w approx 100mm of cable for a single end feed)

- 90˚ Corner Coupler

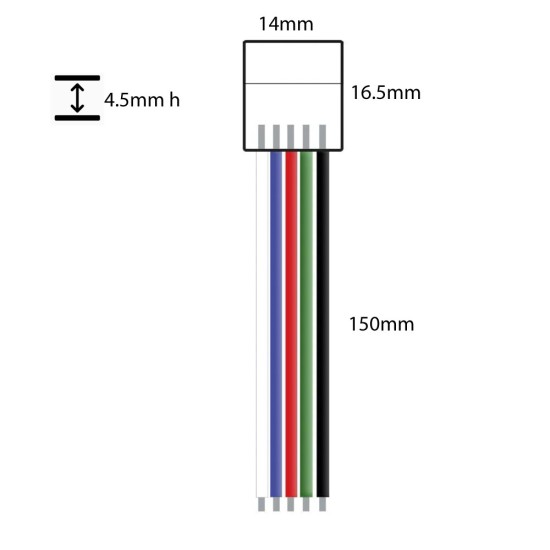

Note - connector physical size is 14mm w x 4.5mm h. If selecting LED channel please ensure you select a channel suitable to accomodate this. Does not fit inside the slim range of LED channels.

Note - these are only compatible with our own LED Tape. Pliers required for crimp installation - firm crimp required, if not firm will result in poor connection, flickering etc. Not reusable - once used they cannot be reused and the LED tape will need to be cut to remove.

5Amp max load - @24V thats 120W - DO NOT CONNECT multiple excessive long runs as well overheat/lead to failure.
